MANUFACTURER:
STI – Service Team for Industry
MODEL:
STR 400 – stacking robot

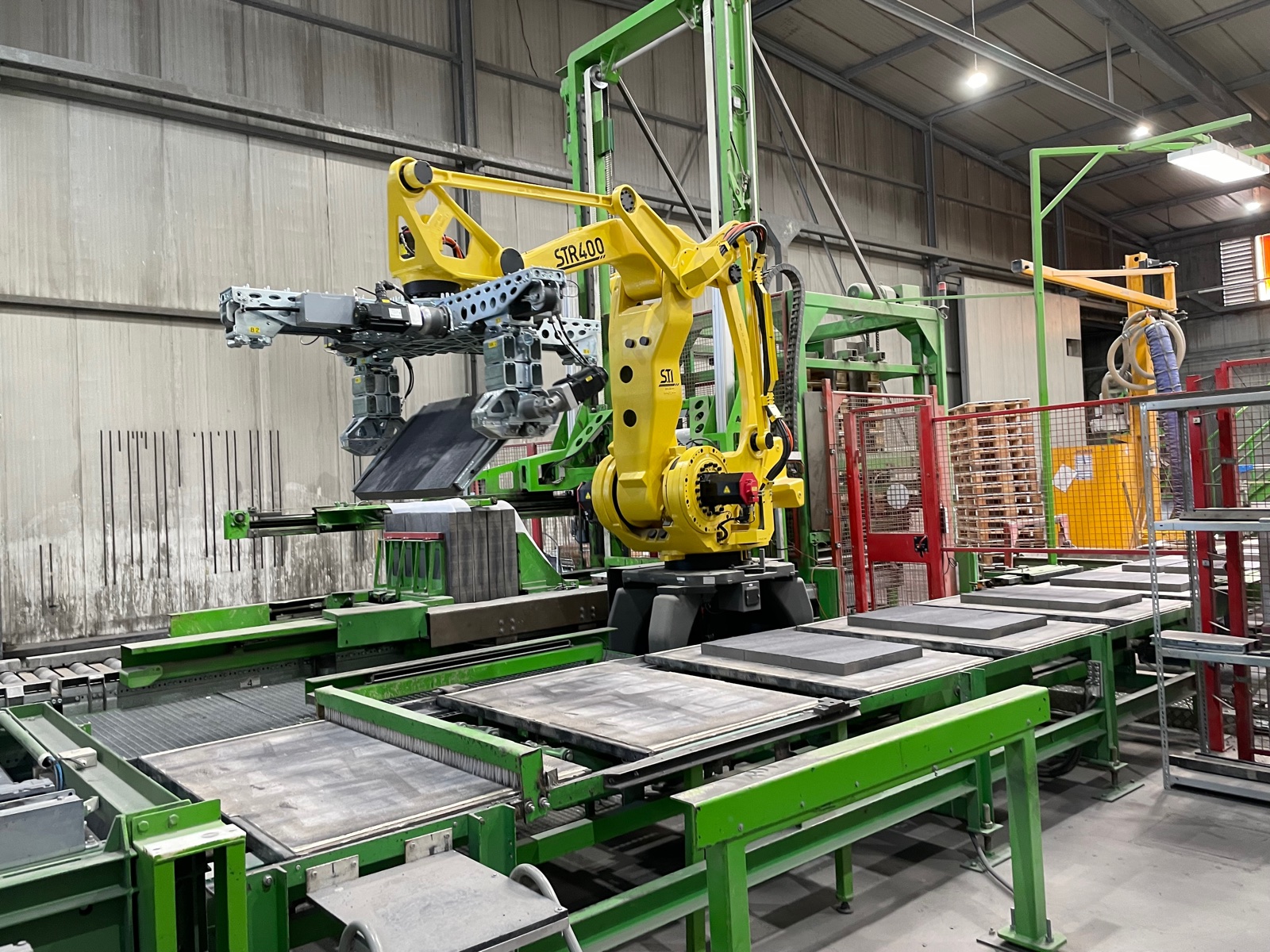

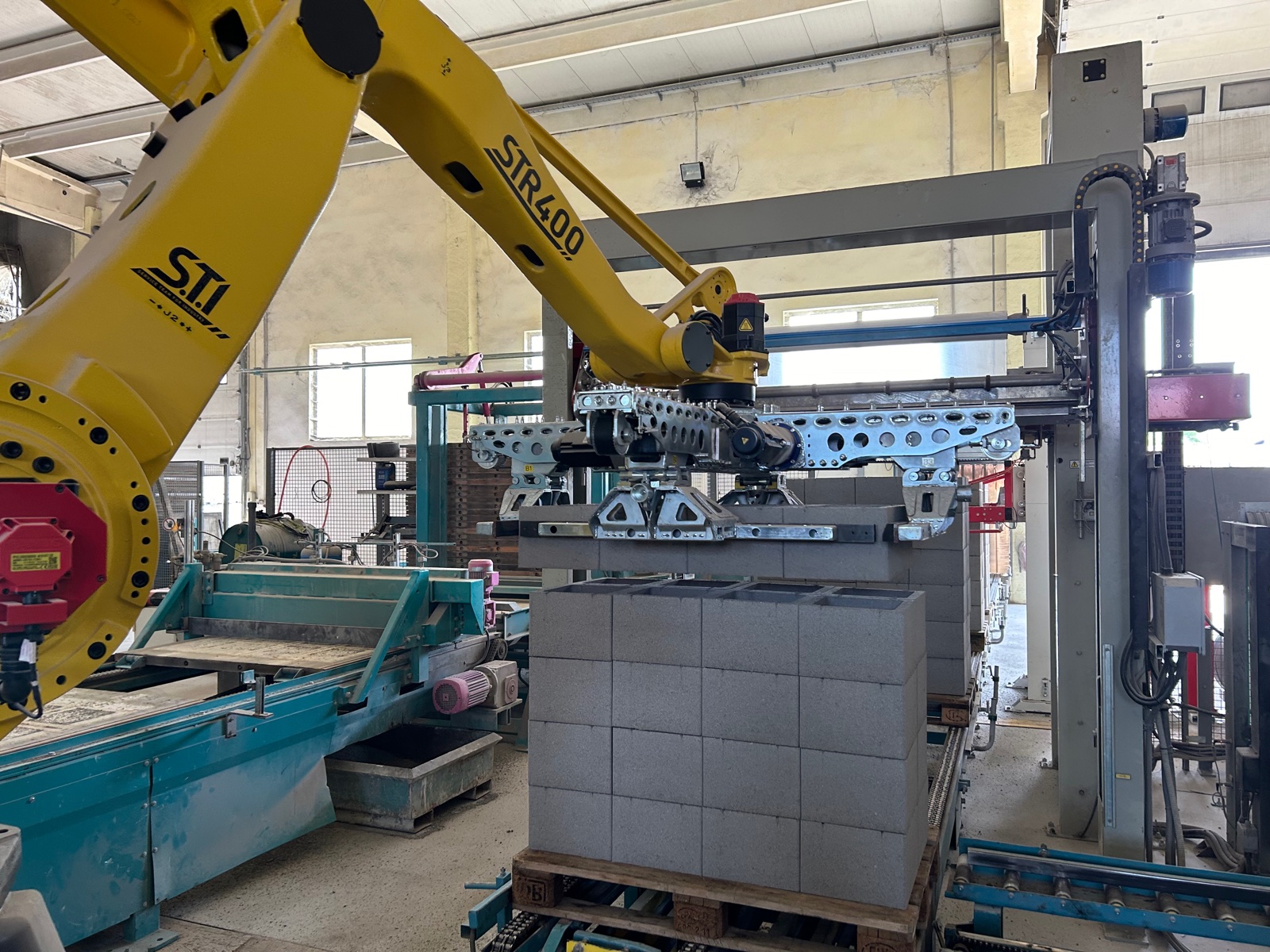

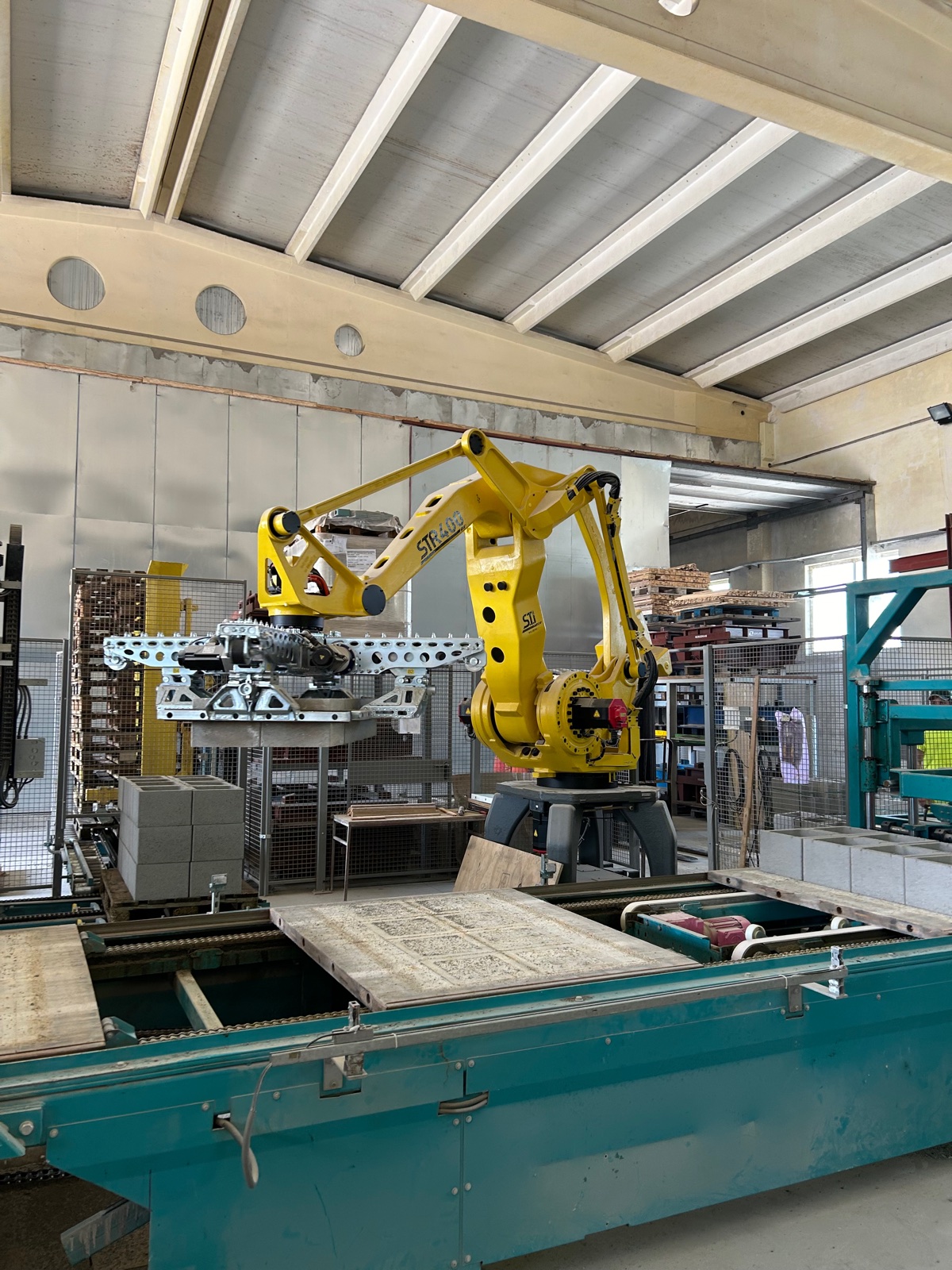

The STR400 stacking robot can be used for palletizing and depalletizing industrially manufactured concrete block products. The system can be implemented in a space-saving manner in almost any existing production architecture. Furthermore, it can be adapted to a wide range of products and to a wide variety of layer patterns.
Typically, the robot is equipped with a 4-jaw gripper and can be controlled autonomously or via a master control system.
Due to a quick-change system, the 4-jaw gripper can be quickly converted to a 2-jaw system and to the optionally available rotating jaw.
Technical specifications:
• Max. load capacity: 450 kg
• Max. product height: 300 mm
• Max. stacking height: 1.500 mm (incl. pallet)
• Working radius robot: 3,00 m
• 4-jaw gripper: opening I 560–1.100 mm / opening II 900–1.450 mm
• Jaw length: 770 / 1.100 mm (short / long)
Options:
• Rotating jaw
